How Can It Be Helpful

Sometimes, a reverse engineer or developer needs to understand how a program works with its memory. For a reverse engineer, this is to better understand the logic of the analysed program (an example of that case will be shown in a future post). For a developer, it is to check that the program is working correctly with its memory and is not causing any memory leaks.

Such tooling should be able to detect every instance of memory function usage, such as malloc, free, calloc, and realloc, and save information about the memory’s state without altering the behaviour of these functions. Therefore, this tool must be positioned somewhere between the program’s actual function call and its implementation. The program’s Import Address Table can be used for this purpose perfectly.

But what is the Import Address Table, and how can it be altered? This post will answer exactly that question and maybe more. It will get a little technical, so don’t be afraid to read it a couple of times to let it sink in.

Understanding the Program Headers

Every Windows portable executable (PE) starts with headers holding several important pieces of information about the binary like its structure, dependencies, or architecture that it is built for. These headers are read first by the PE loader so it can understand the binary that is being loaded.

The specification is derived from the Unix COFF (Common Object File Format). “Portable” means the file format is universal across Windows platforms (recognized by every Windows PE loader) and is used for Windows executables, DLLs, kernel mode drivers, object files, and libraries.

DOS Header

All PE files must start with a simple DOS MZ header. Its first two bytes contain a signature MZ and it is there because of historical purposes - the reason is that Windows keeps its backward compatibility and this header allows the DOS system to recognize it and run a so-called DOS Stub which is a small program just telling the user for example that the system that it is being run on is not compatible. Nowadays, the only important field of the DOS header is the e_lfanew holding the relative virtual address (RVA), which tells the loader where the start of the PE header is.

Relative Virtual Address (RVA) is an offset calculated relative to the Base Address (start address) of the program in memory. A pointer, on the other hand, is relative to the entire computer’s memory. A conversion can be done by the following rule: $pointer = rva + program_base_address$

PE Header

The structure referred to as the PE header or NT header is formally IMAGE_NT_HEADERS and it immediately follows the DOS header. It consists of the following subheaders.

PE Header -> Signature

• A 32-bit signature, 0x00004550 (ASCII PE00).
• Used by Windows to confirm it is a modern Windows executable, distinguishing it from old DOS executables.

PE Header -> File Header (IMAGE_FILE_HEADER)

Contains several fields like:

• Machine Field: Specifies the target architecture (e.g., Intel 80386 or 64-bit). OS uses this to select the correct execution mode.
• NumberOfSections: Total count of sections following the headers.

PE Header -> Optional Header (IMAGE_OPTIONAL_HEADER)

This header is very misleadingly named, as it must be always present in the COFF, which is every PE file. It contains information necessary for loading (stack size, image base, etc.) and is for us the most interesting. These are some of its fields:

• Address Of Entry Point: A crucial RVA that specifies where program execution starts.
• Image Base: The preferred linear load address for the entire binary.
• Dll Characteristics: Flags that can be used to disable features like ASLR (Address Space Layout Randomization) for analysis.
• Data Directory: A trailing array of 16 IMAGE_DATA_DIRECTORY structures.
  • Each member gives the RVA and size (isize) of a logical component (e.g., Import Table, Export Table).
  • Index 0 refers to Export Directory, index 1 refers to the Import Directory (IMAGE_DIRECTORY_ENTRY_IMPORT) and so on.

Only the structure of the Import Directory is relevant to us in this case.

Import Directory

The Import Directory points to an array of structs IMAGE_IMPORT_DESCRIPTOR, where the struct is defined:

typedef struct _IMAGE_IMPORT_DESCRIPTOR {
  union {
    DWORD Characteristics;            // 0 for terminating null import descriptor
    DWORD OriginalFirstThunk;         // RVA to original unbound IAT (PIMAGE_THUNK_DATA)
  } DUMMYUNIONNAME;
  DWORD TimeDateStamp;                // 0 if not bound,
                                      // -1 if bound, and real date/time stamp
                                      // in IMAGE_DIRECTORY_ENTRY_BOUND_IMPORT (new BIND)
                                      // O.W. date/time stamp of DLL bound to (Old BIND)
  DWORD ForwarderChain;               // -1 if no forwarders
  DWORD Name;
  DWORD FirstThunk;                   // RVA to IAT (if bound this IAT has actual addresses)
} IMAGE_IMPORT_DESCRIPTOR;

Relevant variables are:

• OriginalFirstThunk: RVA pointing to the unbound _IMAGE_THUNK_DATA array described later
• FirstThunk: RVA points to the Import Address Table. If bound, it contains the actual symbol addresses.
• Name: RVA pointing to char * with the DLL name, from which this descriptor imports symbols.

The number of _IMAGE_IMPORT_DESCRIPTOR structures in memory is equal to the number of DLLs linked by this PE file. The final _IMAGE_IMPORT_DESCRIPTOR ends with all NULL variables.

Initially, the IAT pointed to by the FirstThunk is unbounded and contains no real addresses. The loader’s job is to go through the following structure, find the actual symbol addresses, and fill the IAT. OriginalFirstThunk points to an array of structures _IMAGE_THUNK_DATA. This array ends with an empty _IMAGE_THUNK_DATA structure.

_IMAGE_THUNK_DATA

The _IMAGE_THUNK_DATA has two different variations based on the type of PE file (32-bit vs. 64-bit):

typedef struct _IMAGE_THUNK_DATA64 {
  union {
    ULONGLONG ForwarderString;  // PBYTE
    ULONGLONG Function;         // PDWORD
    ULONGLONG Ordinal;
    ULONGLONG AddressOfData;    // PIMAGE_IMPORT_BY_NAME
  } u1;
} IMAGE_THUNK_DATA64;
typedef IMAGE_THUNK_DATA64 * PIMAGE_THUNK_DATA64;

#include "poppack.h"                        // Back to 4 byte packing

typedef struct _IMAGE_THUNK_DATA32 {
  union {
    DWORD ForwarderString;      // PBYTE
    DWORD Function;             // PDWORD
    DWORD Ordinal;
    DWORD AddressOfData;        // PIMAGE_IMPORT_BY_NAME
  } u1;
} IMAGE_THUNK_DATA32;
typedef IMAGE_THUNK_DATA32 * PIMAGE_THUNK_DATA32;

The AddressOfData is mostly an RVA pointing to the structure _IMAGE_IMPORT_BY_NAME defined like this:

Mostly because imported symbols can also be referenced by their sequence number. In this case, AddressOfData is of type IMAGE_THUNK_DATA, with the highest bit of the entry set to 1 (this is how this case is recognized) and the remaining bits determining the sequence of the symbol in the library.

typedef struct _IMAGE_IMPORT_BY_NAME {
  WORD    Hint;
  CHAR   Name[1];
} IMAGE_IMPORT_BY_NAME, *PIMAGE_IMPORT_BY_NAME;

The Hint provides the loader with information about the index of the import in the DLL export table. If the Hint does not provide the correct information, the import is found by Name. This is a char * containing the name of the imported symbol.

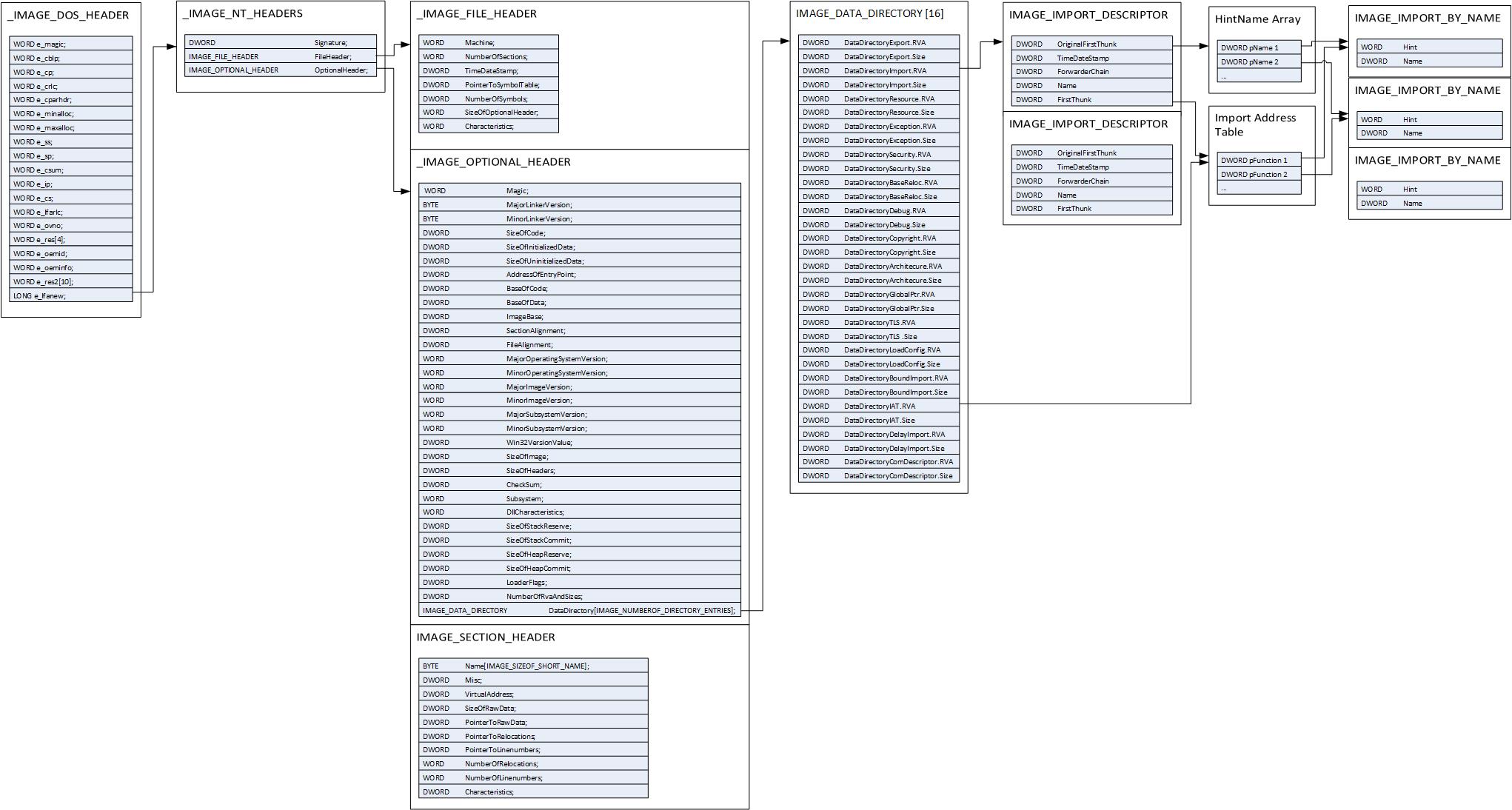

Visually we can depict this using the following figure:

Now we have a good understanding of the structures that the loader is working with. It does the following steps to fill the IAT with actual addresses of symbols:

1. For each required DLL specified by the descriptor, the loader consults the OriginalFirstThunk array, which contains RVAs to the _IMAGE_IMPORT_BY_NAME structures or ordinals, providing the names of the functions needed. This array remains unchanged.
2. The loader loads the external DLL into memory. It then uses the function names/ordinals to search the DLL’s Export Table to find the function’s actual memory address.
3. The loader overwrites the RVAs stored in the FirstThunk array (the IAT) with the real, linear memory addresses of the imported functions. Once this is complete, the program can execute and call external functions directly via the IAT.

In Summary

The PE file structure acts as a layered graph. The DOS header points to the PE header using the e_lfanew. The PE header validates the file and later directs the loader to the Data Directory. The Data Directory points (out of many things) to the Import Directory, where the loader resolves external DLL function names and patches the Import Table field FirstThunk with the live memory addresses. Hooking exploits this final step, intercepting the address replacement to route calls through custom code for analysis or modification.

Back to Debugger

In order to build a memory debugger, we need to read the ‘Import Directory’ of a running program, which already contains the actual addresses in its IAT. We will search for symbols such as ‘malloc’ and ‘calloc’ and replace their addresses with our own, which point to our functions.

It is important to keep track of the original addresses of these functions, as our functions will take notes on memory usage. Ultimately, however, the original function will be called so as not to change the behavior of the original program. It is important to note that the debugger’s purpose is not to prevent memory leaks, but merely to log them and warn the developer about them.

Implementation Details

To work with all of the previously described structures, the windows.h header can be used. This makes it quite simple to read the IAT and overwrite its addresses.

It is important to realize that we mostly need to work with the RVA pointers. For that, the start of the program address needs to be found. For that purpose, there is a little trick in the book:

HMODULE hPEFile = GetModuleHandle(NULL); // NULL means current process
PIMAGE_DOS_HEADER pDosHeader = (PIMAGE_DOS_HEADER) hPEFile;

Then it is possible to get to the PE header:

PIMAGE_NT_HEADERS pNTHeaders = (PIMAGE_NT_HEADERS)( ((BYTE*)pDosHeader) + pDosHeader->e_lfanew );

And we can locate the Import Table and IAT:

pNTHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT]
pNTHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IAT]

The IAT is usually secured, so nobody can alter its values unless the VirtualProtect function is called to unlock this memory segment for writing.

BOOL WINAPI VirtualProtect (
  (LPVOID) lpAddress,   // block address which privileges we want to change
  (size_t) dwSize,      // size of the block
  PAGE_READWRITE,       // read or write?
  (PDWORD)&dwOldProtect // the old PAGE_READWRITE
);

Pointers to the first and last descriptor can be retrieved:

PIMAGE_IMPORT_DESCRIPTOR pImportDescriptor = (PIMAGE_IMPORT_DESCRIPTOR)(((BYTE*)pDosHeader) + pNTHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT].VirtualAddress);

PIMAGE_IMPORT_DESCRIPTOR pImportDescriptorEnd = (PIMAGE_IMPORT_DESCRIPTOR)(((BYTE*)pImportDescriptor) + pNTHeaders->OptionalHeader.DataDirectory[IMAGE_DIRECTORY_ENTRY_IMPORT].Size);

The end of the descriptor array can be identified by checking that all variables of the last descriptor are NULL (based on [17], and by checking the upper bound of the array using the previously defined pImportDescriptorEnd variable:

int IsNullImportDescriptor(const PIMAGE_IMPORT_DESCRIPTOR pDesc) {
	return
			pDesc->Characteristics == 0 &&
			pDesc->TimeDateStamp == 0 &&
			pDesc->ForwarderChain == 0 &&
			pDesc->Name == 0 &&
			pDesc->FirstThunk == 0;
}

// iterate through import descriptors and hook our functions
// termination:
// check all fields are 0 for terminating descriptor
// check bounds to avoid reading beyond valid memory
while ((BYTE*)pImportDescriptor < (BYTE*)pImportDescriptorEnd &&
!IsNullImportDescriptor(pImportDescriptor)) {

	if (pImportDescriptor->Name != 0) {
		// work with the valid DLL
	}
	pImportDescriptor++;
}

Then it is important to validate the DLL further, as functions like free() could be defined in other irrelevant DLLs, where their purpose could be different. So look for DLLs that usually contain the memory functions.

It is usual that Windows does not use external runtime DLL and it puts all the code from the needed libraries to the binary itself. We can forbid it by compiling the code with /MD. That will tell the compiler to use external libraries.

The debugger should be aware of all the possible ways of how the memory functions can be called. Namely:

• malloc
  • Input size can be 0 or NULL. Even in that case malloc returns a valid pointer that needs to be tracked.
• calloc
  • Input size can be 0 or NULL. Even in that case malloc returns a valid pointer that needs to be tracked.
• realloc
  • Input pointer can be invalid, in that case, the debugger should warn that it is using an unknown pointer in realloc.
  • realloc(NULL, size) behaves like malloc(size) - can return a valid pointer that must be tracked
  • realloc(ptr, 0) behaves like free(ptr) and returns NULL, debugger should delete the internal record
  • normal realloc - resizing existing block, debugger needs to change its internal record
  • if realloc failed (newPtr == NULL), original block unchanged, debugger should keep the internal record
• free
  • free(NULL) is valid and does nothing, debugger idles
  • normal free - debugger should delete the internal record

As mentioned in the theoretical section, the symbols can be imported by ordinals and not by names. That is not the case for us, because the memory functions are always imported by name.

The implementation should handle unknown pointers/RVAs wisely and check them before working with them.
